Poor drainage in slums and refugee camps can be lethal – we must do better

Margaret Mezue, Author provided

0
comments

If your main worry about puddles is that you might absent-mindedly wander into one and get your feet wet, consider yourself lucky. Standing water can be a breeding ground for mosquitoes and other insects which can carry diseases such as zika, dengue or chikungunya, and therefore puddles represent a serious threat to human health in much of the world. Already vulnerable people are most at risk, particularly those living in favelas, informal settlements and refugee camps where drainage is poor or non-existent.

I am a drainage expert and have seen the problem first hand in South Africa, South America and Asia. The scale is huge: even in middle-income countries like Brazil or South Africa more than a fifth of the population live in slums, while in poorer countries like Nigeria the rate is much higher – more than 50%. The UN already recognises that providing water, sanitation and health, or WASH, is a human right. It’s time we gave drainage the same status.

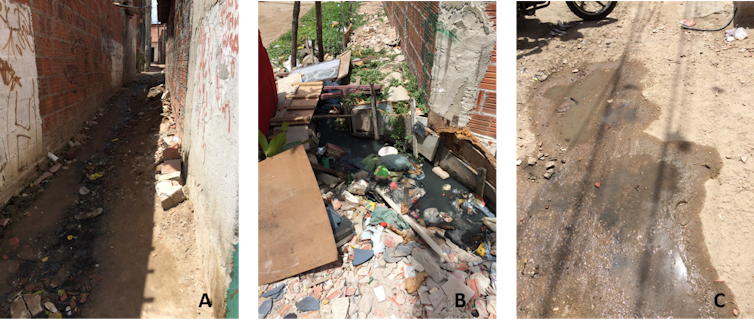

Favela in Fortaleza, northeast Brazil: A) wastewater stream between houses B) greywater mixed with waste C) puddle of water in the street containing mosquito larvae. Sue Charlesworth, Author provided

One solution is sustainable drainage, or SuDS, which mimics nature by encouraging the water to soak into the ground, then storing it and allowing it to slowly flow to groundwater, rivers or streams. On its way, the water is filtered through the soil, improving its quality. Flooding is also reduced, and by using native vegetation, a home is provided for plants and animals, thus increasing their diversity. By encouraging water to seep below the surface, puddles between dwellings and on the street are reduced, and thus fewer mosquitoes will breed.

What does this mean in practice? Considerably more rainwater could be collected, or “harvested” from roofs and put to good use, while the roofs themselves could be “green roofs” covered in plants and soil to help prevent flooding or water collecting in puddles. It also involves digging ditches and filling them with stone to encourage the water to flow under the surface, or using a pavement which allows water to infiltrate, known as pervious paving.

Planning vs chaos

All this is easier said than done, and different environments have different challenges. Refugee camps are formally set up by the UN’s High Commission on Refugees, for instance, which installs the usual water and sanitation systems. But drainage is often not considered and, where it is, it comprises large ditches and pipes, which are not ideal. But the fact that such camps can be planned to some extent, means sustainable drainage could in theory be designed in from the start, using native vegetation and locally available materials.

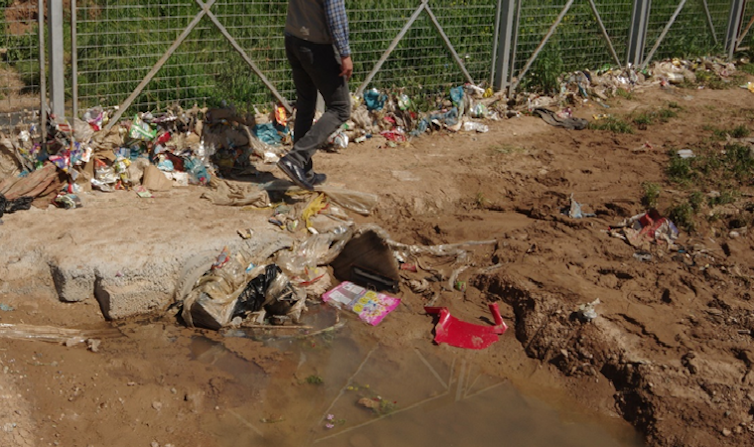

Darashakran refugee camp, Kurdistan region of Iraq: discarded waste as a stream leaves the camp. Simon Watkins, Author provided

In informal settlements, things are more chaotic. A lack of governance and the fact residents do not own the land that they live on discourages anyone from thinking longer term. Poor infrastructure means waste water from kitchens and bathrooms, known as “greywater”, is often disposed of on the street and mixed with rain water. The problem is exacerbated by waste not being collected, meaning it accumulates in the streets and blocks existing drains. With little centralised planning for decent drainage, the onus is on the residents to be proactive and install measures themselves.

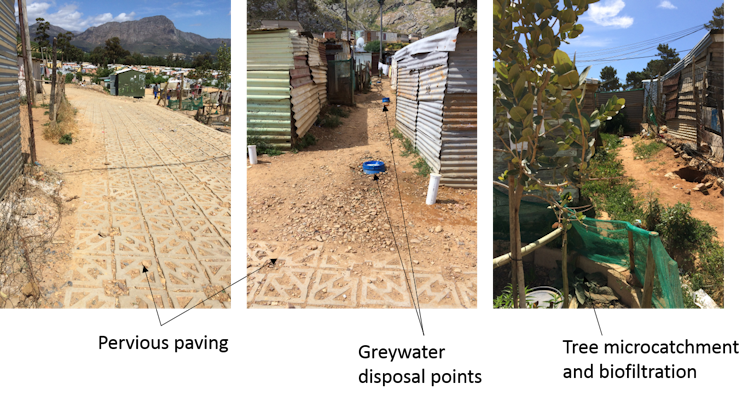

I recently visited an informal settlement in Franschhoek, 90km north of Cape Town, South Africa, where some progress has been made (see figure below). There, plants in containers are used to store, treat and slow the water, a process known as bioretention. Some of that water is then used by single specially-planted trees in certain “microcatchments”. A form of pervious pavement has also been used, along with community greywater disposal points which encourage the water underground via perforated pipes and ditches filled with stone, thus avoiding any puddles.

Franschhoek, South Africa: sustainable drainage and greywater management in an informal settlement. Sue Charlesworth, Author provided

In Iraq, refugee camps are initially set up to handle temporary flows of people from neighbouring Syria, but some camps do eventually become permanent. Water and sanitation systems are designed into the camps as a matter of course but drainage is often last to be included, if at all, resulting in costly retrofits once wastewater and flooding becomes a problem.

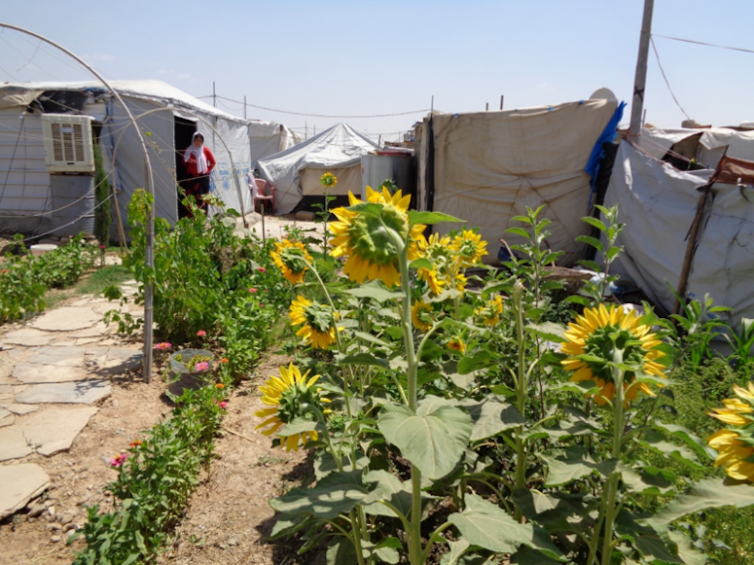

In the Domiz camp in the Kurdish region of northern Iraq, refugees from Syria have used greywater for gardening, rather than discarding it. The image below shows a garden in the camp which has produced ornamental plants as well as vegetables. As well as providing some food, such gardens also provide dignity and a sense of place-making for people in a tough situation. As the owner of the garden below told some colleagues of mine: “This garden reminds me of my childhood, my land. It also provides me with food, but it connects me to my homeland.”

A good use of old water. Andrew Adam-Bradford, Author provided

In both refugee camps like Domiz and informal settlements – and indeed in any settlement, anywhere on the planet – drainage should be considered a human right. In the UN’s terms, WASH should become WASH’D.

The ConversationSusanne Charlesworth receives funding from: South African informal settlements sponsored by the National Research Foundation and Royal Society; refugee camps sponsored by the Humanitarian Innovation Fund; Brazil (Zika) sponsored by the Newton Fund.
